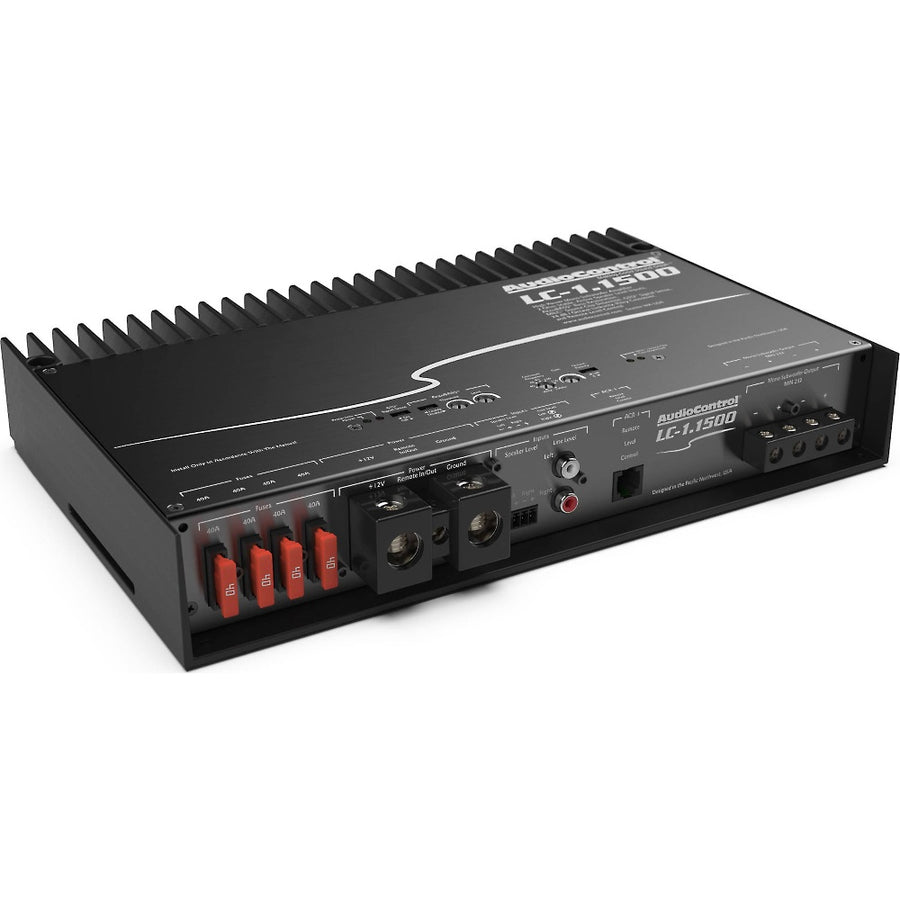

AudioControl LC1.1500

Features:

Audiocontrol LC Series LC-1.1500

Class-D Full Range 4-Ohm Stable Monoblock Amplifier

RMS Power Rating:

4 ohms: 850 watts x 1 chan.

2 ohms: 1500 watts x 1 chan.

1 ohm: ------------N/A------------

Total power output: 1500 watts

CEA-2006 Compliant Amplifier

Pulse Width Modulated MOSFET power supply

Wired remote bass level control included

LED power (green) and protect (red) indicators

Soft start turn-on

Mono channel operation

Speaker-level (high-level) inputs

Preamp RCA outputs to daisy chain multiple amps

3-way protection circuitry (thermal, overload, and speaker short protection)

Dual speaker terminals simplify the hookup of multiple speakers

Heavy duty aluminum alloy heat-sink

Input sensitivity:

Low level: 125mV-5V

High level: 250mV-10V

Frequency Response: 10 - 3000 Hz

Total Harmonic Distortion (THD): <0.01%

Signal to Noise Ratio: 102 dBa

Variable high-pass filter: 30 - 230 Hz, 24 dB/octave

Variable low-pass filter: 30 - 230 Hz, 24 dB/octave

PFM Subsonic filter: 24 dB/octave

Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

Fuse Rating: 40A x 4

Dimensions: 12"W x 7.95"D x 2.1"H
