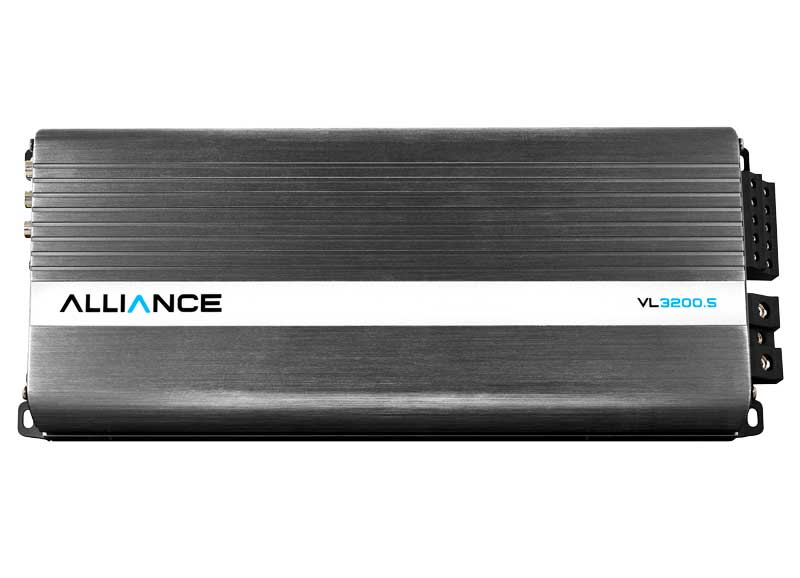

Alliance VL3200.5
$429.99
Small Footprint Class D Amplifier
Utilizes Class D Technology
0-12dB Variable Bass Boost
Includes Sub Level Remote
80% more efficient than traditional Class D amplifiers
Peak Power: 3200W
Power RMS 2Q@14.4V:4×150Watts +1×510 Watts
Power RMS 4Q@ 14.4V:4×90 Watts+1×300 Watts
THD+N @ Nominal Power:4×80 Watts 4Q+1×510 Watts 2Q
Frequency Response:10~30kHz+10~260Hz
SNR:70dB+86dB
Input Sensitivity:0.2V to 6V
Damping Factor:100
Operating Voltage:8.5V to 16V
High Pass Filter(CH 1~CH4):50Hz to 250Hz
Low Pass Filter(CH5):50Hz to 250Hz
Phase Control: 0-180
Total Efficiency:80%
Max Current Draw(A):110
Music Current Draw(A):80
Dimensions:5.8″Wx13.8″L×1.9″H
