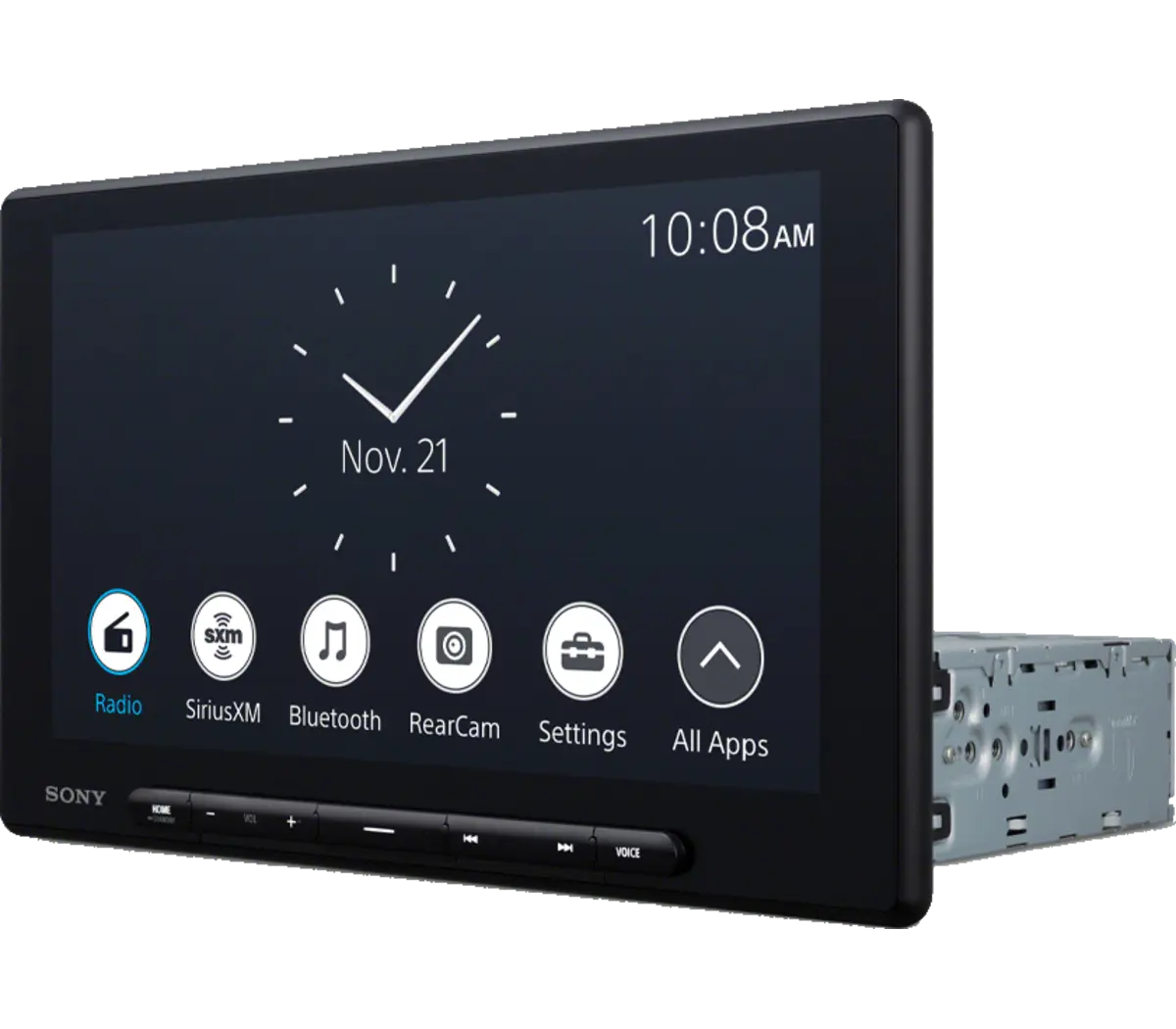

Sony XAV AX8500
$998.99
Specifications
Monitor (AVC)
Brightness
425 cd/m2
Dimmer
Auto/Manual select
LCD Type
TFT Active Matrix
Resolution (DOT)
1280 x 720
Screen Aspect
16:9
SCREEN DIAGONAL (INCH / CM)
10.1 inches / 25.7 cm
Multi Language
Caution
English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
Menu
English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
Bluetooth Audio Feature
Track +/-
Yes
Group (Folder) +/-
Yes
Audio Level Adjustment
Yes (-6dB to +6dB)
Repeat Control (Audio Device side)
Yes
Shuffle Control (Audio Device side)
Yes
Meta Data Indication
Yes
Audio Codec (Bluetooth Audio)
SBC/AAC/LDAC
Cue / Rev
Yes
Pause (Bluetooth Audio)
Yes
Bluetooth Feature
Phonebook Access via PBAP
Yes
Ring Volume Level Control
Yes
Call Volume Level Control
Yes
External Microphone
Supplied
Signal Strength Indication
Yes
Speed Dial
Yes (6 memories)
Last Dialed Call
Yes (select from the dialed call history)
Alphabetical Phonebook Sorting
Yes
Battery Reminder
Yes
Recent Calls (# of)
Yes
What's In The Box
What's In The Box
Warranty Card;External Microphone;Power Supply Leads;Connection Cables(Audio/Camera);USB Extension Cable(Type-C);GPS Antenna
USB Mass Storage Device Control Feature
USB Device Control (Audio Codec)
MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
USB Device Control (Pause)
Yes
USB Device Control (Repeat)
TRACK/FOLDER/DRIVE
USB Device Control (Resume Play)
Yes
USB Device Control (Shuffle)
OFF/FOLDER/DEVICE
USB Device Control (Video Codec)
ASF/WMV/AVI/MKV/MPEG-4
USB device control (audio playable file extension)
.mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
USB device control (video playable file extension)
.asf/.wmv/.avi/.mkv/.mp4
User Interface
Parking Control
Yes
Rear View Camera-In Marker Setting
Yes
Touch Panel
Yes/Capacitive
Parking Line Adjust
Yes
Display Panel
Dimmer Adjust
Yes
Bluetooth Profile
A2DP
Yes (1.3.1)
AVRCP
Yes (1.6.1)
PBAP
Yes (1.1)
HFP
Yes (1.7.1)
Tuner Features
Preset
FM18/AM12
RDS / EON
Yes (RBDS)
Auto Memory
BTM
Panel Design
Key Illumination
Yes (White)
Size & Weight
Dimensions (W x H x D)
269 × 167 × 258 mm
Weight
2.6 kg
General Features
Pre Out
5V 3-Pre (Front LR / Rear LR / Sub x 1)
USB
Yes (Type-C x 1, REAR)
Equalizer
14-band Equalizer
Firmware upgradability
Yes
Output Power
55W x4
Rear View Camera in
Rear/Input 1/Input 2
Time Alignment
Yes
Album artwork Indication
Yes
